Silicon Interfaces^® RapidIO™ is a packet - switched interconnect intended primarily as an intra - system interfaces for a chip-to-chip and board-to-board communications at Gigabyte-per-second performance levels. Developed as an open standard, the RapidIO™ architecture addresses the needs of present and future systems. RapidIO™ is focused as a processor, memory and memory mapped I/O interfaces optimized for use inside the chassis.

This high performance low pin - count packet switched system level interconnect provides highly reliable error handling scheme whilst transferring packets between processing elements via the RapidIO™ Fabric.

In the diagram below, the User Application sends data in chunks of 32 bits to the core, which composes and queues the packets in the RapidIO™ format, before transmission to the Fabric. Similarly, the Fabric sends RapidIO™ packets to the chip, which in turn queues and sends data to the User Application via a Microcontroller Interface.

Product Highlights :

• Fully Compliant with RapidIO™ Interconnect Specification Rev 1.1, 3 / 2001 prescribed by RapidIO™ Trade Association.

• 32 bit standard Host / Link Interface.

• Full Duplex Independent Transmit and Receive Data Path.

• Dual Data Rate (DDR) : 62.5 - 125 MHz.

• Auto scaling 8 / 16 bit Ports.

• Respects 32 bit boundaries.

• Rx Queuing : 16 X 128 X 32 or 8 Kbytes of internal buffer.

• Tx Queuing : 8 X 128 X 32 or 4 Kbytes of internal buffer.

• Maximum Packet Length : 276 bytes.

• Minimum Packet Length : 8 bytes.

• Supports a Very Highly Reliable Error Handling Scheme.

• CRC - 16 Polynomial.

• Incorporates Intermediate CRC for Packet Length of 80 bytes or greater.

• Upto 8 Unacknowledged Packets.

• 32 Bit Internal Data Path.

• Supports : PACKET RERTY, PACKET NOT ACCEPTED, STOMP, TIME - OF - DAY SYNCHRONIZATION, TRAINING and THROTTLE.

• Separate Management Interface (CSRs / CARs).

• Data Rate 250 - 500 Mbps per LVDS Pin Pair; Upto 8 Gbits per sec throughput.

• Outputs 32 bits of Data to User Interface.

• Full Control of User Interface bus by user.

• Tx and Rx sections designed for minimum latency between the input and output.

• Smart Bandwidth Utilization (Designed for minimum latency between Link and Fabric, Intelligent EOP avoidance between Back - to - Back Packets).

• Fully automated Test Bench for checking for error - free packets.

• 3 Clock Domains - 1 for Management, 2 for Fabric and Link Interface.

Product Specifications :

• Fully synthesizable Register Transfer Level (RTL) Verilog HDL core

• Test Bench Environment : Verilog

• Targeted FPGA Xilinx Virtex - II Family

• Clock Frequency : 62.5 - 125 MHz

• LP - LVDS Buffers (for Fabric end interface)

Product Options :

• Adaptations : 16 / 32 bit PCI Possible or
                      AMBA Host Interface Possible.
                      AMBA Possible.

• Add - ons : Nil.

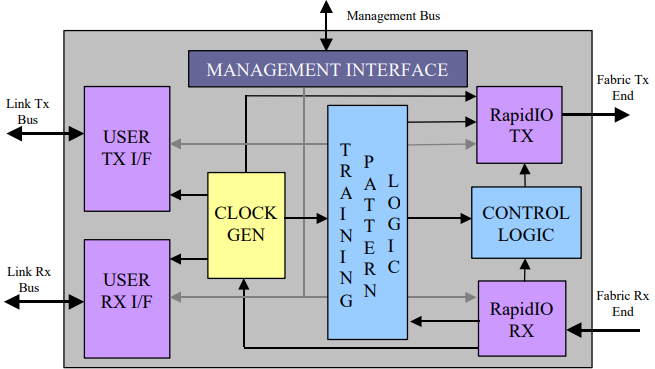

RapidIO Block Representative Schematic :

• RapidIO RX : Comprises Frame Detect module to detect toggling of received frame signal and CRC - 16 Checker to check the authenticity of received packets. The Receive Buffer Control Logic controls the transfer of data onto the on - chip Receive Queue. The capacity of the Receive Queue is 16 x 128 x 32 bits.

• User RX Interface : It provides Data to User Link, which is basically a 32 bit Microcontroller interface.

• User TX Interface : Accepts 32 bits of data from the User Link and transmits the same to the Transmit Queue, which is an on - chip block RAM bearing a capacity of 8 x 128 x 32 bits.

• RapidIO TX : Contains Transmit Control logic to pick up data from TX Queue and transmit over to RapidIO bus. It also squeezes in Control Frames as and when necessary. This section also contains CRC Generator, Transmit Control, Transmit Frame Generator and the Transmit Queue. Data from queue is picked up by the Transmit Control logic and transmitted over RapidIO Transmit Bus, tdata [0 : 31], in compliance with RapidIO standard.

• Control Logic : This module strips and decodes the various Control Symbols transmitted from the RapidIO Fabric, as well as generates Control Symbols to be transmitted over to the Fabric.

• Training Pattern Logic : This block is responsible for decoding and transmitting Training Patterns immediately after chip initialization and as and when required by the adjacent Processing Element across the Fabric. Upon Reset, communication with the Fabric is possible only after the successful completion of the Training Sequence.

• Management Interface : The Management Interface is mainly responsible for writing / reading to / from CARs (Capability Registers) and CSRs (Command and Status Registers). A totally independent interface has been provided for the same.

Notice : Information in this document is indicative. Product specifications are subject to change without notice. Silicon Interfaces shall not be responsible for direct, indirect or consequential damages that may accrue through typographical errors or otherwise. No license, expressed or implied to any intellectual property rights is granted by this document. Product names mentioned herein may be trademarks and/or registered trademarks of their respective owners. Rights are hereby acknowledged.

For more information please contact Silicon Cores at info@siliconinterfaces.com
