IEEE 1394a - 2000 LINK LAYER CONTROLLER
Silicon Interfaces® Link core is a functional block available for insertion into a customer's ASIC design, which supports the IEEE 1394a - 2000 Draft specifications for a high - speed serial bus. The SI16FWA20 Link core is implemented using VHDL synthesizable code to provide portability across Silicon Interfaces Gate Array and Cell - Based ASIC technologies.
SI16FWA20, 1394a - 2000 Link Layer Controller Core provides data packet delivery service for Asynchronous and Isochronous (real - time) data transmission. It performs arbitration request, packet generation and checking as well as data and acknowledgement transmission. Packet Generation includes setting up of Packet Header, Address, Data CRC, Packet Channel, Destination Address and Transaction Code. Silicon Interfaces® Link Layer Controller core also provides complete support for bus Cycle Master and cycle control operation. SI16FWA20 is designed to support 100, 200 and 400 Mbps transmission, when used with the appropriate external Physical Layer device. This depends upon the speed provided with a 2 bit, 4 bit or 8 bit interface, which does not require special high - speed buffers. Besides, this version supports generation of LPS (Link Power Status) signal, based on the current mode in which the device operates (Differentiated or Undifferentiated).
SI16FWA20 highly integrated single - chip core is Silicon Interfaces® Intellectual Property and represents the company's proven Link Layer design experience as well as expertise in the field of complex designs. The complete modular design of SI16FWA20 core facilitates easy customization in order to include value added distinguished features.
Product Highlights :
Fully compliant with IEEE 1394a - 2000 Standard.
PHY - Link I/F conforms to the specifications described in the section 5A of IEEE 1394a - 2000 standard.
Half - duplex mode of operation.
Programmable bus rates of 100/200/400 Mbps.
Supports following Packet types : Asynchronous, Asynchronous Stream, Isochronous Stream and Cycle Start.
Supports, in all, 13 Packet Formats - 10 Asynchronous, 1 Asynchronous Stream, 1 Isochronous and 1 Cycle Start.
Maximum payload sizes of 2K bytes (Asynchronous) and 4K bytes (Isochronous).
Cycle Master cable.
4K bytes of Transmit and Receive FIFO.
Supports both Differentiated and Undifferentiated modes.
Disabling of PHY - Link I/F through LPS output pin.
Restoring of PHY - Link I/F through LinkOn_digital input pin.
Reception of Isochronous Stream Packets regardless of Isochronous period.
Supports transmission of concatenated packets at assorted modes and speeds.
Selective programming of arbitration enhancements through Acceleration Control Request.
Product Specifications :
Modes : Asynchronous, Asynchronous Stream and Isochronous Stream
Core : Fully synthesizable Register Transfer Level (RTL) VHDL
Test Environment : Reusable Verilog with abundant scenarios
Targeted FPGA : Xilinx Spartan-6 / Virtex-6
Clock Frequency : 50 MHz
Product Options :
(May be separately priced)
Adaptations : 32 bit PCI Host Interface possible
Interrupt - driven Host Interface
Add - ons : Generic 32 bit Host Interface
An elaborate test suite containing assorted packets and sizes

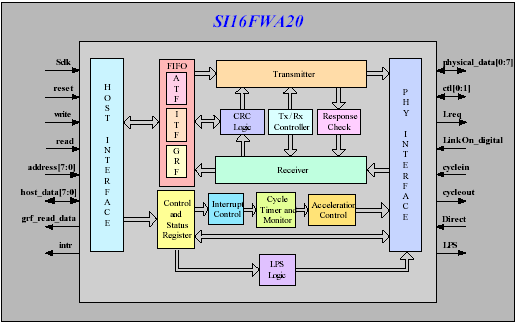

LLC Block Representative Schematic of SI16FWA20 :
Host Interface : The Host Interface allows the SI16FWA20 to be easily connected to most 32 bit Host processors. The Host Interface comprises a 32 bit data bus and an 8 bit Address Bus.
Physical Interface : This module provides services to the Transmitter and Receiver, which include gaining access to the serial bus, sending packets, receiving packets, and sending and receiving Acknowledge Packets to and from the PHY. Physical Interface module encodes the output whenever set to the Differentiated mode of operation.
Transmit and Receive FIFO : I16FWA20 contains a 4K bytes FIFO block, which primarily contains two Transmit sub - FIFOs i.e. ATF (Asynchronous Transmit FIFO) and ITF (Isochronous Transmit FIFO) and one Receive sub - FIFO i.e. GRF (General Receive FIFO). This software configurable FIFO unit allows customization of each sub - FIFO for individual applications.
Tx / Rx Controller : The Tx / Rx controller generates signals for controlling Transmit and Receive operations.
Transmitter : The Transmitter retrieves data from either the ATF or the ITF and creates well - formatted serial bus packets to be transmitted through PHY Interface module.
Control and Status Register : This module contains a set of registers, which store vital information meant to configure and program the device.
Receiver : The Receiver takes the incoming data from the Physical Interface module, checks its integrity and ultimately either stores the same into the Receive memory or discards the said packet and sets the appropriate Data Error Bit in the CSR, in case of a corrupt packet.
Cycle Timer and Monitor : This section comprises a Cycle Time Register, which is designed at par with IEEE 1394a - 2000 standard. This Cycle Time Register holds the current time - stamp. The Cycle Monitor observes chip activity and handles scheduling of Isochronous data activity accordingly.
CRC Logic : Generates a 32 bit Cyclic Redundancy Check (CRC) sum value during transmission and checks the same during reception. This CRC is generated for the purpose of error detection of packets, for both header as well as data payload. The CRC polynomial is as shown below : X^32 + X^26 + X^23 + X^22 + X^16 + X^12 + X^11 + X^10 + X^8 + X^7 + X^5 + X^4 + X^2 + X^1 + 1
Acceleration Controller : After every 125μs, the device allows selective enabling or disabling of arbitration enhancements. Acceleration arbitration indicates start of Nominal Cycle.
Response Check : This module acts as a watchdog for errors that occur relative to different Request and Response packets in the Asynchronous mode of operation. As for example, it indicates errors such as Response Data Error, Type Error, Conflict Error, Address Error or Mismatch In Data Length of Request and Response packets.
LPS Block : The LPS output pin from the device requests the PHY to either enable or disable the PHY - Link Interface. The output characteristics of LPS, if provided by the Link, depend upon whether the interface mode is Differentiated or Undifferentiated. During Differentiated mode of operation, LPS shall be a pulsed output, whilst the Link is alive, whereas in Undifferentiated mode of operation, LPS remains permanently high, as long as the Link remains alive. In both modes, LPS remains low when Link is either inactive or shut down.
Interrupt Control : Available as an option for making the Host interrupt - driven. An Interrupt gets generated whenever any of the 26 bits in the Interrupt Target Register of the CSR gets set through internal logic. Some of the Interrupt types that the device can handle are : Good Packet Received, Header Error, Channel Invalid, Data Error, Format Error, Cycle Start, Cycle Lost, ATF Full, ITF Full, GRF Full, Subaction Gap and Broadcast Configuration Sent.
Notice : Information in this document is indicative. Product specifications are subject to change without notice. Silicon Interfaces shall not be responsible for direct, indirect or consequential damages that may accrue through typographical errors or otherwise. No license, expressed or implied to any intellectual property rights is granted by this document. Product names mentioned herein may be trademarks and/or registered trademarks of their respective owners. Rights are hereby acknowledged.
Copyright© 2002- Silicon Interfaces Private Limited. All rights reserved.
IEEE 1394a - 2000 LINK LAYER CONTROLLER
Silicon Interfaces® Link core is a functional block available for insertion into a customer's ASIC design, which supports the IEEE 1394a - 2000 Draft specifications for a high - speed serial bus. The SI16FWA20 Link core is implemented using VHDL synthesizable code to provide portability across Silicon Interfaces Gate Array and Cell-Based ASIC technologies.
SI16FWA20, 1394a - 2000 Link Layer Controller Core provides data packet delivery service for Asynchronous and Isochronous (real - time) data transmission. It performs arbitration request, packet generation and checking as well as data and acknowledgement transmission. Packet Generation includes setting up of Packet Header, Address, Data CRC, Packet Channel, Destination Address and Transaction Code. Silicon Interfaces® Link Layer Controller core also provides complete support for bus Cycle Master and cycle control operation. SI16FWA20 is designed to support 100, 200 and 400 Mbps transmission, when used with the appropriate external Physical Layer device. This depends upon the speed provided with a 2 bit, 4 bit or 8 bit interface, which does not require special high - speed buffers. Besides, this version supports generation of LPS (Link Power Status) signal, based on the current mode in which the device operates (Differentiated or Undifferentiated).
SI16FWA20 highly integrated single - chip core is Silicon Interfaces® Intellectual Property and represents the company's proven Link Layer design experience as well as expertise in the field of complex designs. The complete modular design of SI16FWA20 core facilitates easy customization in order to include value added distinguished features.
Product Highlights :
Fully compliant with IEEE 1394a - 2000 Standard.
PHY - Link I/F conforms to the specifications described in the section 5A of IEEE 1394a - 2000 standard.
Half - duplex mode of operation
Programmable bus rates of 100/200/400 Mbps.
Supports following Packet types : Asynchronous, Asynchronous Stream, Isochronous Stream and Cycle Start.
Supports, in all, 13 Packet Formats - 10 Asynchronous, 1 Asynchronous Stream, 1 Isochronous and 1 Cycle Start.
Maximum payload sizes of 2K bytes (Asynchronous) and 4K bytes (Isochronous).
Cycle Master cable.
4K bytes of Transmit and Receive FIFO.
Supports both Differentiated and Undifferentiated modes.
Disabling of PHY - Link I/F through LPS output pin.
Restoring of PHY - Link I/F through LinkOn_digital input pin.
Reception of Isochronous Stream Packets regardless of Isochronous period.
Supports transmission of concatenated packets at assorted modes and speeds.
Selective programming of arbitration enhancements through Acceleration Control Request.
Product Specifications :
Modes : Asynchronous, Asynchronous Stream and Isochronous Stream
Core : Fully synthesizable Register Transfer Level (RTL) VHDL
Test Environment : Reusable Verilog with abundant scenarios
Targeted FPGA : Xilinx Spartan - 6/Virtex - 6
Clock Frequency : 50 MHz
Product Options :
(May be separately priced)
Adaptations : 32 bit PCI Host Interface possible
Interrupt - driven Host Interface
Add - ons : Generic 32 bit Host Interface
An elaborate test suite containing assorted packets and sizes
LLC Block Representative Schematic of SI16FWA20 :
Host Interface : The Host Interface allows the SI16FWA20 to be easily connected to most 32 bit Host processors. The Host Interface comprises a 32 bit data bus and an 8 bit Address Bus.
Physical Interface : This module provides services to the Transmitter and Receiver, which include gaining access to the serial bus, sending packets, receiving packets, and sending and receiving Acknowledge Packets to and from the PHY. Physical Interface module encodes the output whenever set to the Differentiated mode of operation.
Transmit and Receive FIFO : SI16FWA20 contains a 4K bytes FIFO block, which primarily contains two Transmit sub - FIFOs i.e. ATF (Asynchronous Transmit FIFO) and ITF (Isochronous Transmit FIFO) and one Receive sub - FIFO i.e. GRF (General Receive FIFO). This software configurable FIFO unit allows customization of each sub - FIFO for individual applications.
Tx / Rx Controller : The Tx / Rx controller generates signals for controlling Transmit and Receive operations.
Transmitter : The Transmitter retrieves data from either the ATF or the ITF and creates well - formatted serial bus packets to be transmitted through PHY Interface module.
Control and Status Register : This module contains a set of registers, which store vital information meant to configure and program the device.
Receiver : The Receiver takes the incoming data from the Physical Interface module, checks its integrity and ultimately either stores the same into the Receive memory or discards the said packet and sets the appropriate Data Error Bit in the CSR, in case of a corrupt packet.
Cycle Timer and Monitor : This section comprises a Cycle Time Register, which is designed at par with IEEE 1394a - 2000 standard. This Cycle Time Register holds the current time - stamp. The Cycle Monitor observes chip activity and handles scheduling of Isochronous data activity accordingly.
CRC Logic : Generates a 32 bit Cyclic Redundancy Check (CRC) sum value during transmission and checks the same during reception. This CRC is generated for the purpose of error detection of packets, for both header as well as data payload. The CRC polynomial is as shown below : X^32 + X^26 + X^23 + X^22 + X^16 + X^12 + X^11 + X^10 + X^8 + X^7 + X^5 + X^4 + X^2 + X^1 + 1
Acceleration Controller : After every 125μs, the device allows selective enabling or disabling of arbitration enhancements. Acceleration arbitration indicates start of Nominal Cycle.
Response Check : This module acts as a watchdog for errors that occur relative to different Request and Response packets in the Asynchronous mode of operation. As for example, it indicates errors such as Response Data Error, Type Error, Conflict Error, Address Error or Mismatch In Data Length of Request and Response packets.
LPS Block : The LPS output pin from the device requests the PHY to either enable or disable the PHY-Link Interface. The output characteristics of LPS, if provided by the Link, depend upon whether the interface mode is Differentiated or Undifferentiated. During Differentiated mode of operation, LPS shall be a pulsed output, whilst the Link is alive, whereas in Undifferentiated mode of operation, LPS remains permanently high, as long as the Link remains alive. In both modes, LPS remains low when Link is either inactive or shut down.
Interrupt Control : Available as an option for making the Host interrupt - driven. An Interrupt gets generated whenever any of the 26 bits in the Interrupt Target Register of the CSR gets set through internal logic. Some of the Interrupt types that the device can handle are : Good Packet Received, Header Error, Channel Invalid, Data Error, Format Error, Cycle Start, Cycle Lost, ATF Full, ITF Full, GRF Full, Subaction Gap and Broadcast Configuration Sent.
Notice : Information in this document is indicative. Product specifications are subject to change without notice. Silicon Interfaces shall not be responsible for direct, indirect or consequential damages that may accrue through typographical errors or otherwise. No license, expressed or implied to any intellectual property rights is granted by this document. Product names mentioned herein may be trademarks and/or registered trademarks of their respective owners. Rights are hereby acknowledged.
Copyright© 2002- Silicon Interfaces Private Limited. All rights reserved.
